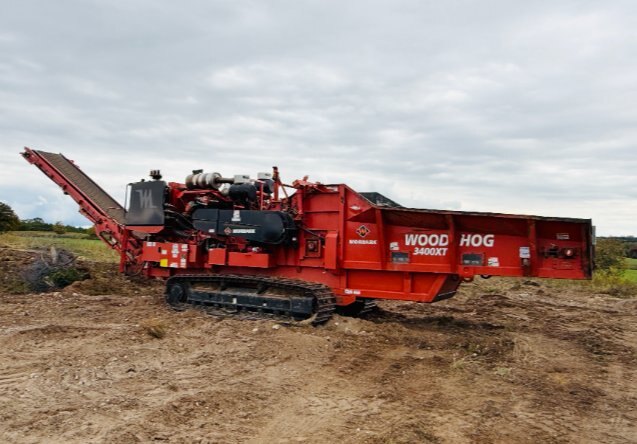

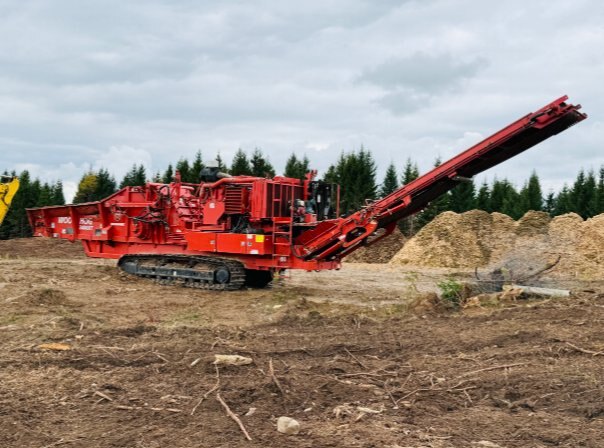

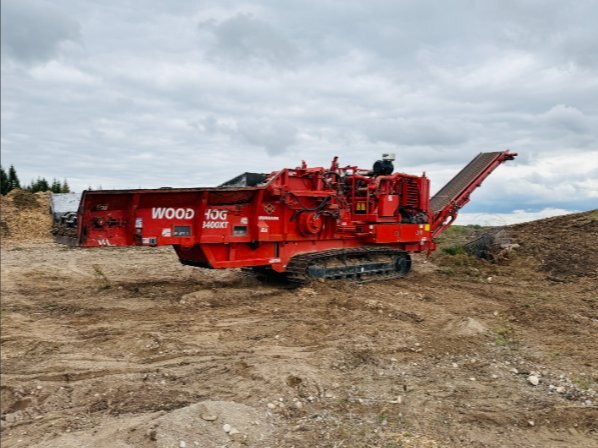

USED - 2020 MORBARK 3400XT WOOD HOG

SERIAL NUMBER 194-1093

YEAR: 2020

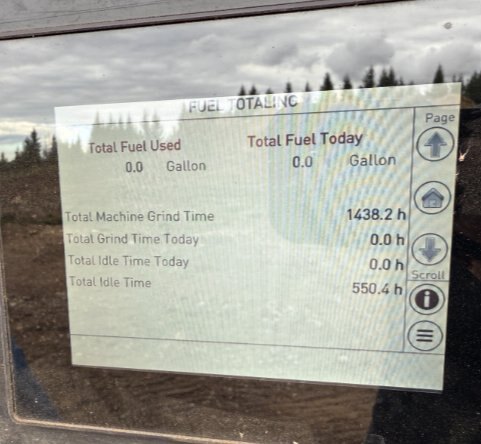

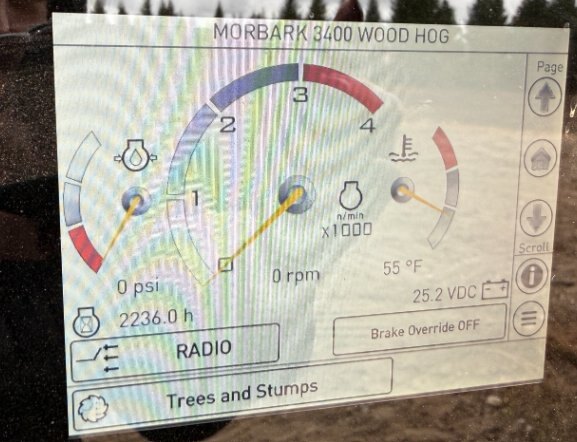

HOURS ON METER: 2236 Hrs (1 438 hrs Grinding mode + 550 hrs Idle mode)

ENGINE SERIAL NUMBER: BDN04230

• -32" x 58-1/2" Hammermill system constructed of heavy duty 20" diameter rotor,
• (16) 1-1/8" thick 2-piece laser-cut rotor plates to ensure precision and enforce
• steel strength. The plates are keyed on a 7" diameter shaft with 4-7/16" bearings
• on both ends of the rotor and (8) 2-1/4" hammer retaining rods
• -Variable speed infeed system consists of one (1) 34" diameter top compression feed
• roll with internal drive, and a 18' long x 57-1/2" wide live floor
• -Floating deflect plate in yoke
• -Hammermill drive includes all belts, sheaves, bushings and shields
• -Heavy duty tube type frame
• -300 gallon fuel tank
• -100 gallon hydraulic oil tank
• -Low-level hydraulic oil tank warning/shutdown
• -Center access door to millbox hood
• -Infeed flares
• -Dust suppression system
• -M.I.C.S. (Morbark Integrated Control System) located in the instrument panel
• -Hydraulically operated debris containment door

ADDITIONAL FEATURES:

• -320L Caterpillar undercarriage with 24" (600 mm) double grouser pads
• -Hammermill pattern complete with (18) 2" balanced forged heavy duty hammers,
• (18) 3-1/16" wide double-edged replaceable hammerhead inserts and (18) rakers

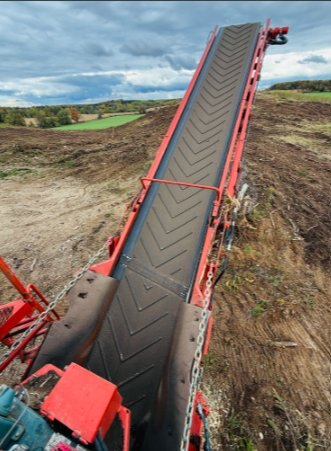

• -36” wide stacking conveyor with hydraulic fold for transport
• -(3) 5" hexagon holes x 1" thick steel heavy duty split-grates
• -Magnetized end pulley, for discharge conveyor, complete with
• collecting slide tray for ferrous metal removal

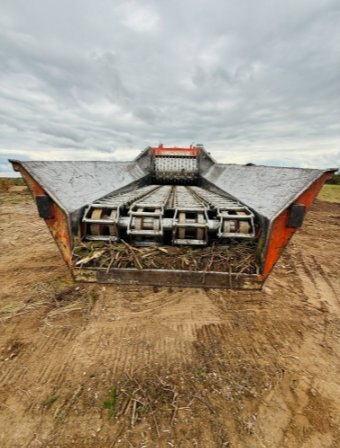

• -Live floor equipped with four (4) strands of WD-120 chain in a staggered configuration
• -Removable floor panels installed

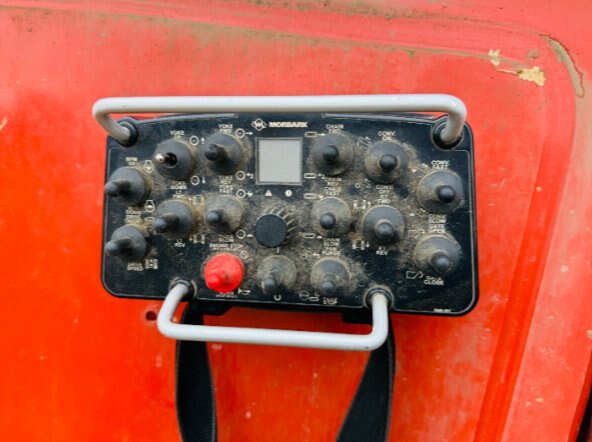

• -Remote control kit, 900MHz
• -Morbark orange urethane paint system
• -Hydraulic rod puller
• -Saylor-Beall split air compressor and 11-HP gasoline Honda motor

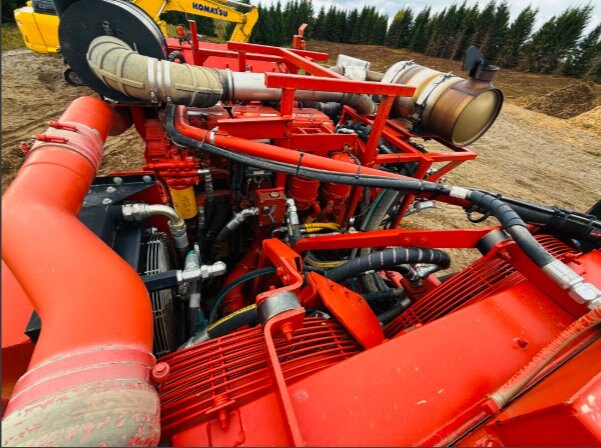

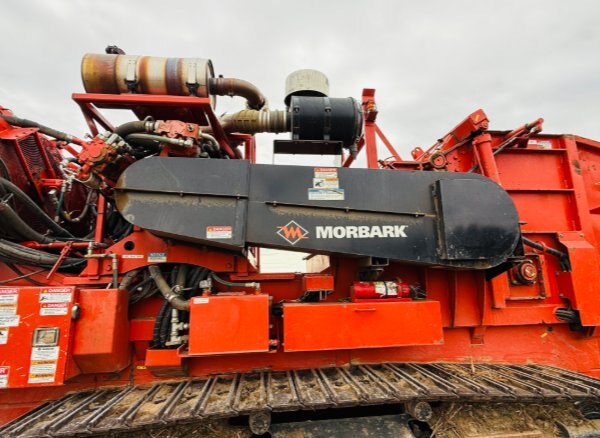

• -Caterpillar C18, 800-HP, T4F electronic diesel engine  complete with PT Tech HPTO14FX hydraulic clutch and Morbark  automatic reversing fan system
• -Externally adjustable break-away torque limiter
• -Electrical kit
• -Hydraulic kit

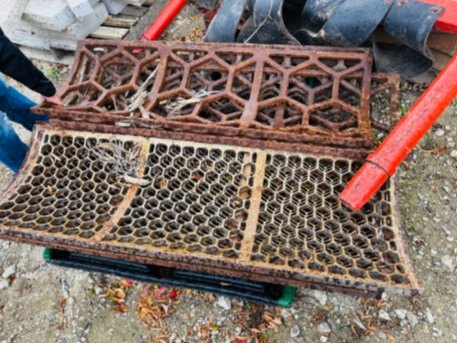

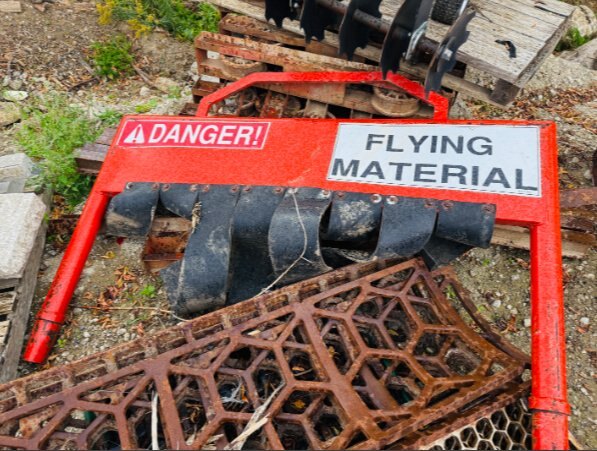

Screens included (to be confirmed):

• (3) 1’’ hex
• (3) 2’’ hex
• (2) 8’’ hex
• (1) 4’’ hex
• (1) 5’’ hex
• (1) 6’’ hex
