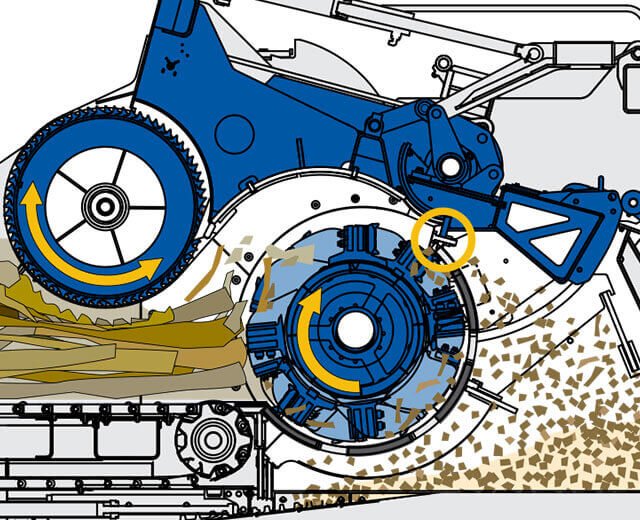

3-Stage Grinding Process

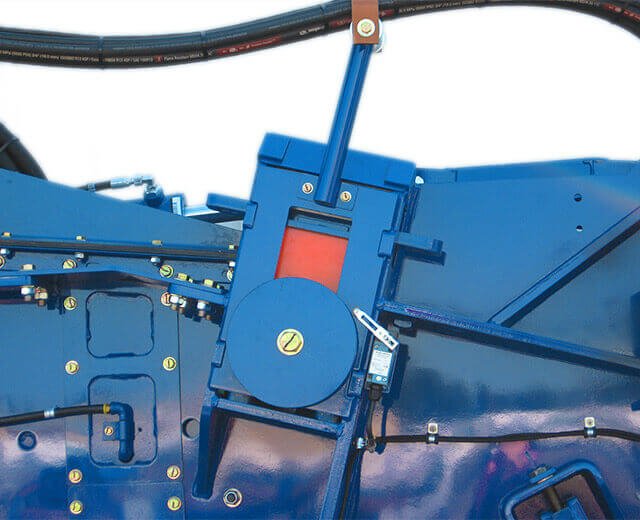

Impact Release System Protects Your Investment

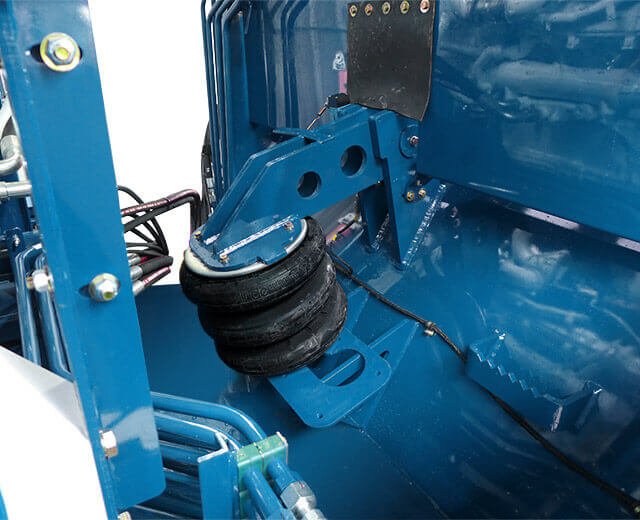

The Second Line of Defense: The Impact Cushion System
- Monday 8:00 AM - 5:00 PM
- Tuesday 8:00 AM - 5:00 PM
- Wednesday 8:00 AM - 5:00 PM
- Thursday 8:00 AM - 5:00 PM
- Friday 8:00 AM - 4:00 PM
- Saturday Closed
- Sunday Closed
ID # 39137351

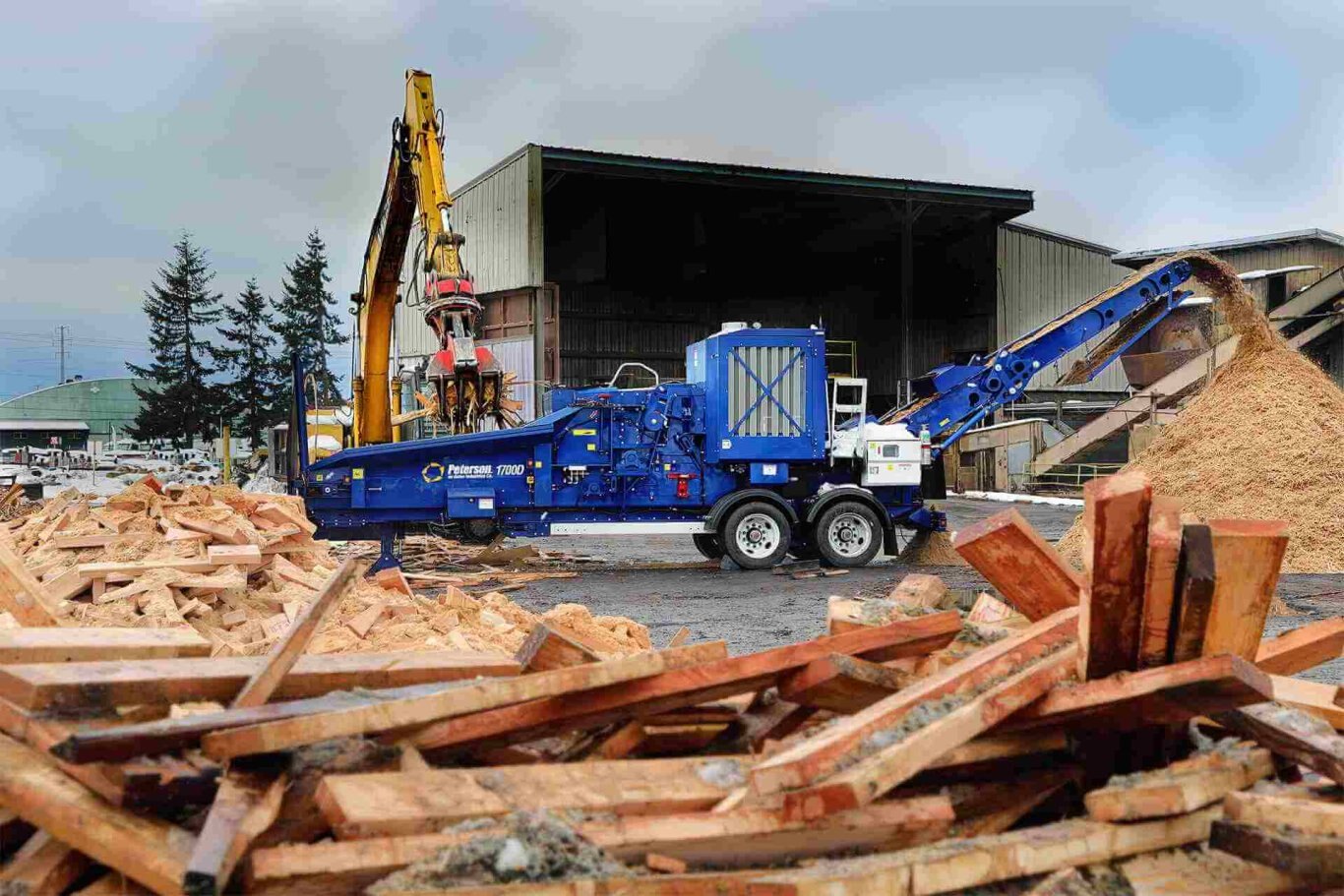

Astec - Peterson 1700D Horizontal Grinder
Call for Price
Overview
Specifications
options
weights
features
downloads
dimensions
powertrain
production
feed system
rotor & grates
system controls
discharge system
Heavy duty and mobile, the 1700D Horizontal Grinder can readily reduce a wide range of materials.
The large feed opening on the 1700D measures 54″ x 27″ (137 x 69 cm). When boosted by the high-lift feed roll, the feed opening’s maximum lift of 41.5 inches (105 cm) can tackle the largest of feedstock, and allows excellent accessibility to the rotor for maintenance.
The 1700D Horizontal Grinder is equipped with a Caterpillar Tier IV C9.3 455 hp (EU Stage V, 339 kW) engine, or an optional, export-only C9.3B Tier III, 415 hp (309 kW) engine. At 44,000 pounds (20 000 kg), it is the lightest of the grinder series, and is easily transportable.
Model
1700D
Category Name
Forestry & Environmental Recycling
Year
2025
Sale Type
New
Manufacturer
Astec - Peterson
Weights
| Machine Weight | 41,000 lbs |
| 5th Wheel Weight | 9,000 lbs |
| 5th Wheel Weight, EU Spec. | 2,200 lbs |
| Tandem Axle Weight | 32,000 lbs |
Features
|
|
|
Dimensions
| Operating Length | 36' 3" |
| Operating Width | 9' 6" |
| Operating Height | 11'10" |
| Travel Width | 8'4" |
| Travel Length | 36'3" |
| Travel Height | 11'10" |
| Frame Length | 28' 6" |
| Ground Clearance | 9" |
| Axle Spacing | 51" |
Powertrain
| Engine |
Cat C9.3B Tier IV, 455 hp Cat C9.3B Tier III, 415 hp (export only) |
| Clutch | PT Tech SCT 2500 |
| Fuel Tank Capacity | 146 US gal |
| Main Hydraulic Tank Capacity | 72 US gal |
| DEF Tank Capacity | 17 US gal |
Production
| Production | Volume | Weight |
|---|---|---|
| Greenwaste | 140 yd³ | 39 tons |
| Scrap Board | 185 yd³ | 30 tons |
*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.
Feed System
| Feed Opening (w x h) | 54" x 27" |
| Hopper Width | 54" |
| Feed Conveyor Width | 4'6" |
| Feed Chain | 4 sections, full hopper width |
| Compression Roll Diameter | 24" |
| Land Clearing Mode | 54" x 41.5" |
Rotor & Grates
| Rotor Width | 55.5" |
| Rotor Diameter | 26.5” |
| Rotor Shaft Size | 4.33" @ bearing, 4.75" @ center |
| Bit Size | 2.5" x 4.5" |
| Number of Bits | 22 drum rotor, 18 pinned rotor |
| Rotor Speed | 10,000 fpm @2200 rpm |
| Number of Grate Sections | 3 |
| Total Grate Area | 15.6 ft² |
| Grate Coverage | 174º |
| Grate Thickness | 3/4" |
System Controls
| Adaptive Control System | Yes |
| Radio Remote | Yes |
| Peterson+ Analytics | Yes |
Discharge System
| Discharge | Compact Conveyor | Short Conveyor |
|---|---|---|
| Discharge Conveyor Width | 3' 6" | 3' 6" |
| Discharge Conveyor Height | 9' 2" | 13' 6" |
| Conveyor Speed | 500 or 600 fpm | 500 or 600 fpm |
Model
1700D
Category Name
Forestry & Environmental Recycling
Year
2025
Sale Type
New
Manufacturer
Astec - Peterson
Quantity
1
